Tyre Baler

By:Ms Season Tian
Position:Editor
Feb 01, 2018

Instruction:
SIMEC tyre baler is mainly applied to compress the car tyre, pick-up tyre and truck tyre. The weight of a single package is 1-1.5 ton, the capacity can be 3-4.5 t/h. SIMEC tyre baler solve the problems of increasing waste tyre, benefit the environment. The baled tyre can be recycled and produced to new rubber products, turning the waste into wealth.
tyre-baler-STB-100TY
STB-100TY
tyre-baler-STB-150TY
STB-150TY


Type STB-100TY STB-150TY
Compress force 100T 150T
Motor Power 11KW 18.5KW
Size of compress room 1500*760*1000mm 1800*100*1000mm
Weight of bale 800-1200KG 1300-1500KG
Capacity 2-3 bales/hour 2-3 bales/hour
Machine size 2000*1660*3800mm 2400*1800*4500mm
Machine weight 6 t 8.5t

Main Features:
  • Siemens motor
  • Hydraulic system  Huade Beijng
  • Electric system Schneider
  • Linked System:  Pressure plate adopts linked design,  preventing any partial damage  from non-uniform pressure.
  • Safety guarantee by multi protection functions.
  • Intelligent control by one click operation.

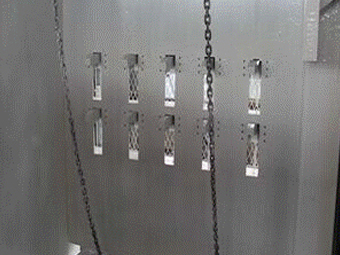

anti-rebound-device
Anti-rebound Device

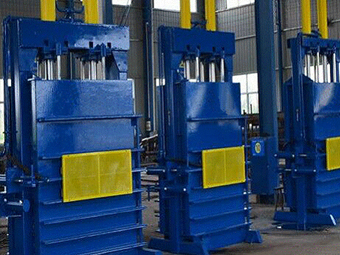

tyre-baler
Tyre Baler


Main parts:
  • Compress room;
  • 100 T vertical compress oil cylinder;
  • Hydraulic gate lock devices for both two gates;
  • Anti rebound device;
  • Hydraulic system;
  • Power system;
  • An option and possibility to be equipped with diesel engine.

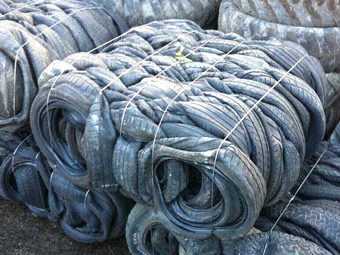

baled-tyre

packaged-tyre
