Bagasse Pellet Project In Indonesia

In the middle of November, it’s the coming winter season in China. SIMEC has finished a bagasse pellet production project successfully in Pati, Central Java, Indonesia. Our customer, the second largest sugar factory in central Java, was very satisfied with SIMEC technology and output pellets. SIMEC mainly provided the SPM780 pellet mill with 2.5-3 TPH capacity and SKLN 14x14 integrated pellet cooler & sifter. The rotary dryer and bagasse crusher were provided by a local supplier.
sugar-mill-office
Sugar Mill Office

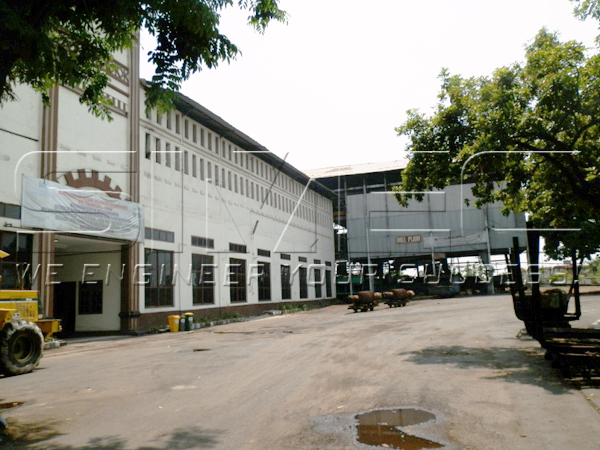

sugar-factory-in-pati-java
Sugar factory in Pati, Java

The bagasse of this sugar factory was often stored in bulk and baled. It was utilized as the biofuel for their own boilers or sold as the raw material of the fungi medium. The customer would export the bagasse pellets as cattle feed to Japan.
simec-spm780-pellet-mill-and-skln-14x14-pellet-cooler
SIMEC SPM780 Pellet Mill, and SKLN 14x14 Pellet Cooler

The initial moisture of the bagasse is 42%-45%, and size is 5-7 cm. So the whole production process is Fiber Drying → Fiber Hammer Crushing → Bagasse Dust Pelleting →
Pellet Cooling & Sifting → Pellet Packing.

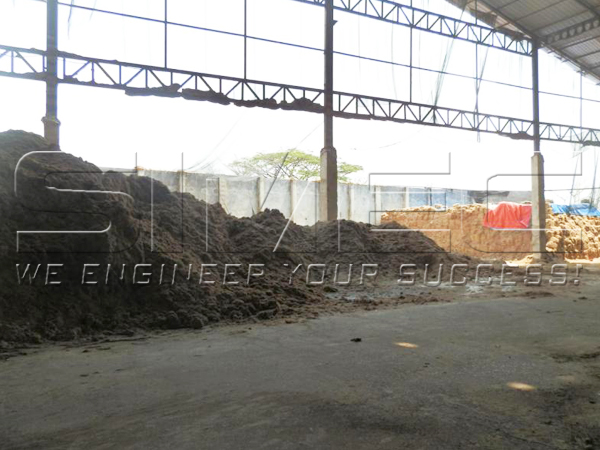

bagasse-storage-in-sugar-factory
Bagasse Storage in Sugar Factory

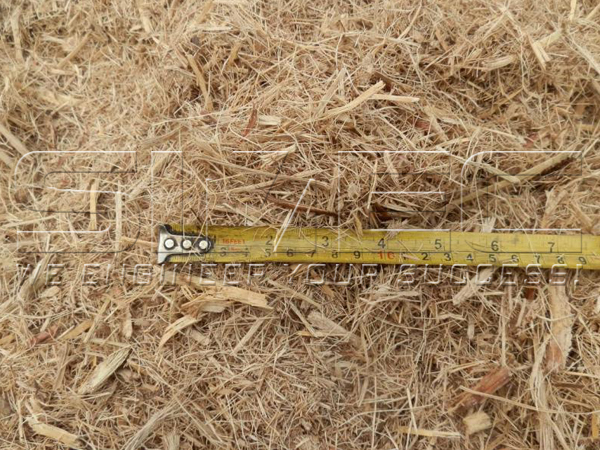

initial-bagasse-size
Initial Bagasse Size

After the customer finished the installation and electrical works, two of our technicians were sent on site for the commissioning of the pellet mill and pellet cooler and training the operators. In this project, before pelleting, the bagasse was dried in the rotary dryer firstly, and then crushed in the bagasse crusher. With our rich experience of producing the bagasse pellets, the suitable moisture and size of the bagasse before pelleting are 15%-18% and 3-5 mm.
Nevertheless, the raw material processed by the dryer and crusher of this project could not meet the suitable humidity and particle size. The moisture was reduced to 20%-23%, and size to 10-20 mm.

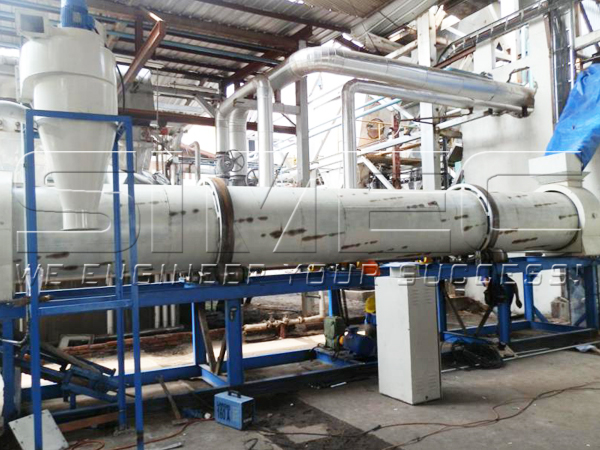

Rotary-Dryer
Rotary Dryer

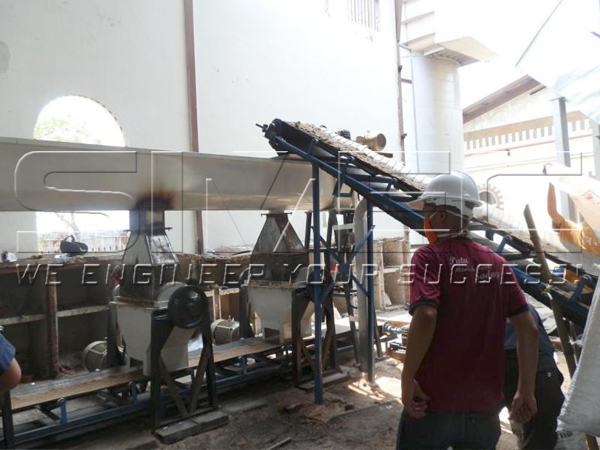

bagass-fiber-crusher
Bagasse Fiber Crusher

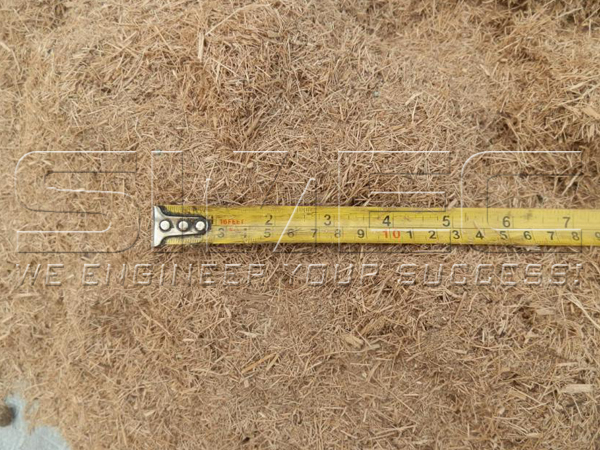

crushed-bagasse-fiber
Crushed Bagasse Fiber

Under the above mentioned pre-treated raw material condition, the pellet mill was running well and pellets output smoothly. The speed adjustable anti-blockage screw feeder conveyed the bagasse continuously into the pellet chamber; the unique design double force feeders fed the bagasse evenly to the pressing area. The output pellets after cooling and sifting were very hard and glossy.

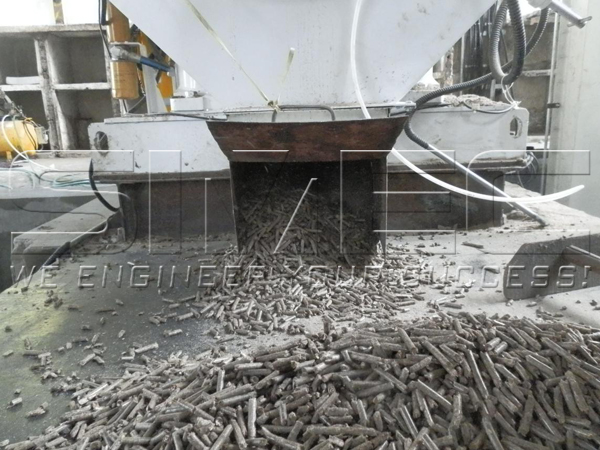

bagasse-pellet-produced-in-Indonesia
Bagasse Pellet Outputting

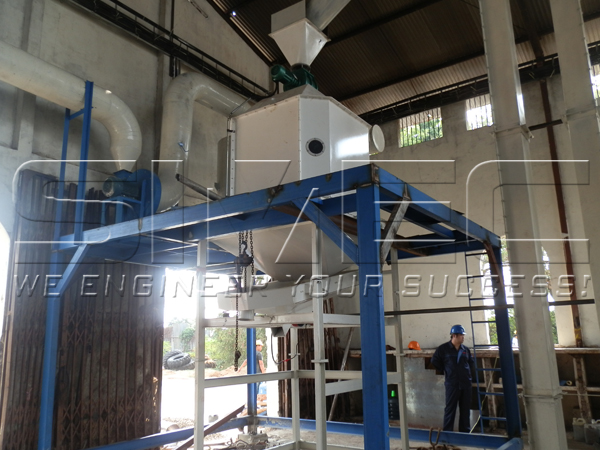

cooler-&-sifter
Pellets Cooling & Sifting

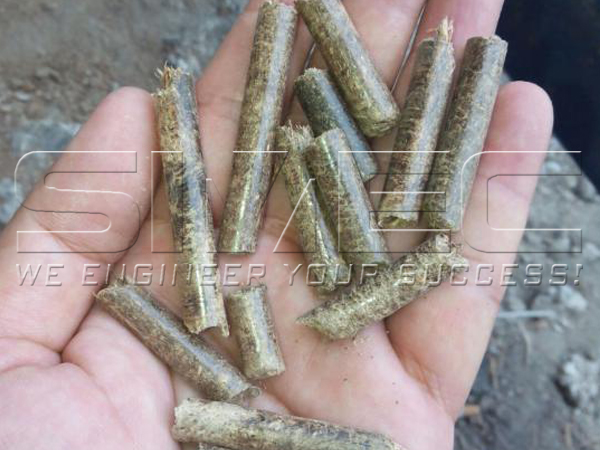

Final-Bagasse-Pellets
Final Bagasse Pellets

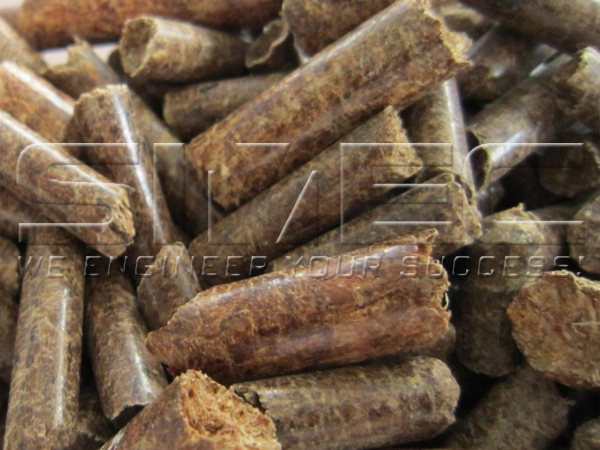

bagasse-pellet
Bagasse Pellets
SIMEC is always committed to providing our customers with the most suitable bagasse pellet production line. We sincerely hope to establish long term cooperation relationship with our customers and partners. If you have the sugar cane bagasse to deal with, please contact us. We would help you to convert the fiber into valuable feed pellets or biofuel pellets by our rich project experience and reliable technology.
