HENAN SINOVO MACHINERY ENGINEERING CO. produces biomass fuel machinery, and has developed portable biomass pellet plant that is workable for different raw materials in different areas.
Mobile biomass pellet plant (MPL-22) consists of screw conveyor, 300 type pellet mill, drying & cooling system, vibrating sieve, air driven conveying system, dust collector, etc. It can be removed near to raw material and reduce transportation cost of raw material. It’s excellent to be owned by a farm or wood process plant.

KEY PARAMETERS:
         Capacity: 200~300 kg/h  Dia.6 mm pellet
         Pellet density:≥1.1 g/cm3
         Raw material moisture: 12%~18%
         Pelletizing rate:≥95%

EQUIPMENT LIST OF MPL-22 MOBILE PELLET LINE

Equipments that need engines
1. Pelletizing mill                           1set         22KW
2. Secondary crushing machine      1set         11KW
3. Feeder of pelletizing mill             1set         1.5KW
4. Material inlet screw conveyor      1set         1.5KW
5. Cooler                                       1set         3KW
6. Fan                                           1set         3KW
7. Air lock                                      2set         0.75 KW/set
8. Vibrating sieve                            1set        0.75 KW
9. Electrical control cabinet              1 set
10. Wind pipes                               1 unit
11. Steel plate base                        1 sets
12. Dust Collector                           1 set       To collect all dusts from hammer mill and cooler into one
                                                                  final exhaust gate, which is up to EU emission standard

Total power:43.5KW
Total Weight: 3.5 Metric Ton

PHOTOS OF PLANT
BIO-C22-Mobile-Biomass-Pelletizing-System
MPL-22 Mobile Biomass Pelletizing System

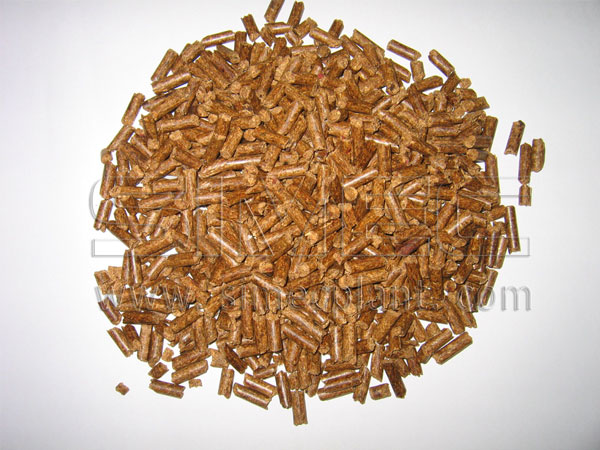

Pellet-fuel
Pellet Fuel

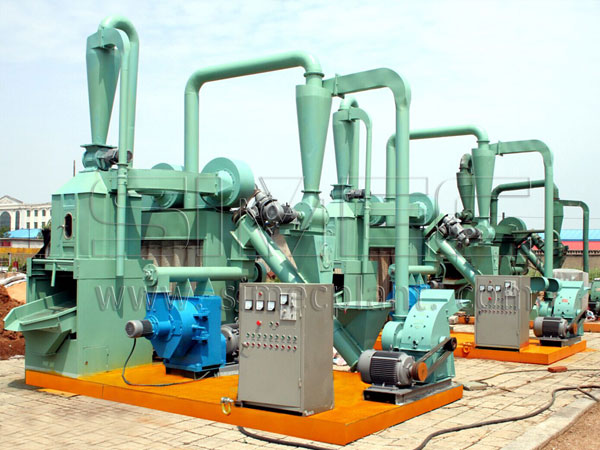

BIO-C22-Mobile-Biomass-Pelletizing-Set
MPL-22 Biomass Pelletizing Set

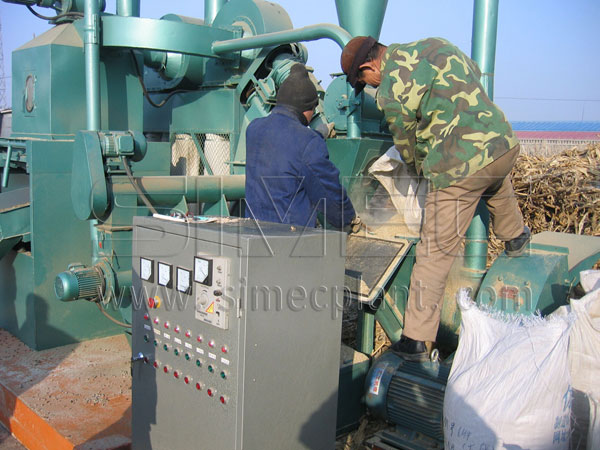

process-of-production
Process of Production
