Pellet Sifter

Pellet Sifter

By:Ms Season Tian
Position:Editor
Jul 07, 2015

Pellet Sifter Specifications:

  • Three moving modes are combined, resulting in good sifting effect;
  • Belt is adopted for driving the screener hull. The bias weights are balanced and low noise. The support at the tail of screener hull is an improved elastic support with less vibration;
  • The pulley support is turned to elastic tail support, greatly reducing noise level and improve performance;
  • The improved steel cable structure avoids the wearing of steel cable;
  • The adoption of one body or combined screener cover structure guarantees lower screener cover’s weight, stronger rigidity and better sealing;
  • The inner structure of outlet adopts streamline design can avoid material jam and cross-contamination.

Photos of pellets sifter

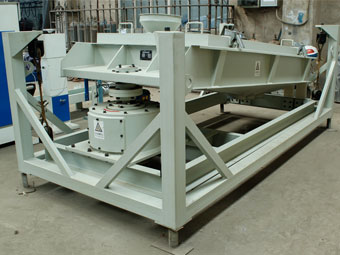

pellet sifter

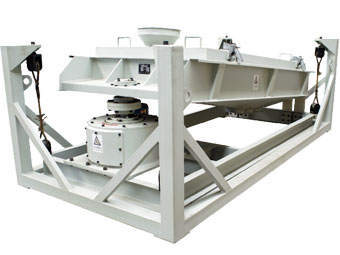

sifter

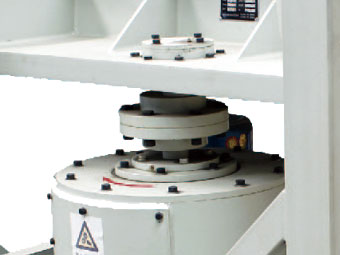

wood pellet sifter

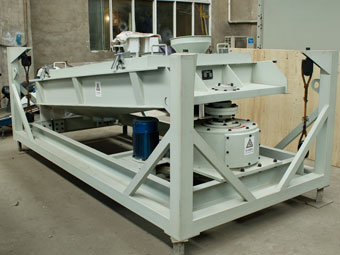

pellet sifter


Technology Parameter of Wood Pellet Sifter

Model SFJH80X2 SFJH110X2 SFJH130X2
Capacity(t/h) 1-2 3-4 5-6
Power(kw) 1.1 2.2 3

Features

  • High frequency screening
  • Large output capacity
  • High effeciency
  • Less fault, less maintainance, simple operation
