SINOVO MACHINERY ENGINEERING

Palm EFB Machines

Palm EFB Single Barrel Press

By:Ms Season Tian
Position:Editor
Feb 01, 2018
The moisture content of the Fresh EFB which comes directly from the Palm Oil Mill is reduced by the Press from approximately 70% m/c to 50% - 55% m/c, each EFB is usually torn into 3-4 discrete chunks.

The juice which is squeezed out contains sludge oil from which 0.2% to 0.3% OER can be recovered by transferring the juice to the Palm Oil Mill's existing Oil Recovery System.

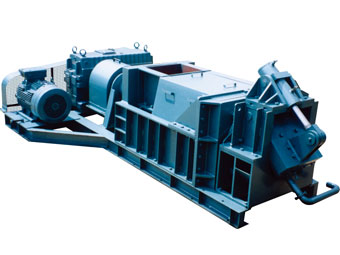

Palm EFB Single Barrel Press


Technology parameter of Palm EFB Single Barrel Press

  • Model : SE/SSBP 50
  • Capacity : 12 Mt/Hr (Fresh EFB)
  • Motor : 45 Kw + 2.2 Kw (60 hp + 3 hp)
  • Gearbox : SEW Eurodrive or equivalent
  • Hydraulic Plug : Hinged Hydraulic Plug c/w, 30T Hydraulic Power Pack & Cylinder and 3 hp power & control unit.
  • Function : To bring down the moisture content of EFB and squeeze out the juice for oil recovery ( about 0.2% OER).
  • Feed Stock : Whole EFB
  • Fiber Produced : Bunch in discrete pieces (m/c : 50% to 55%)

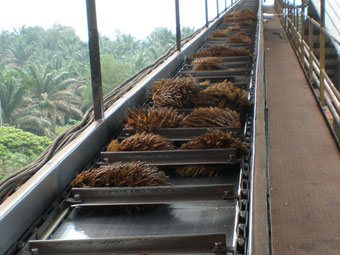

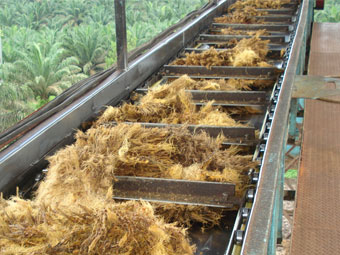

Workshop of Palm EFB Processing

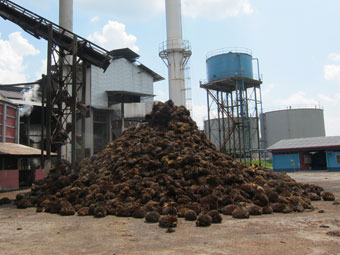

Palm EFB
