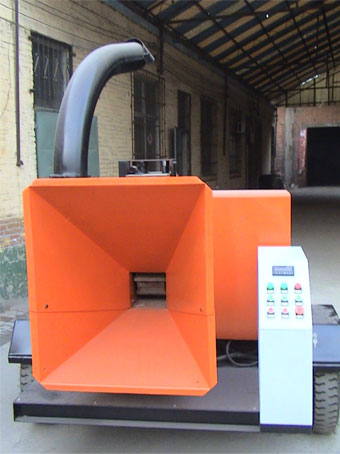

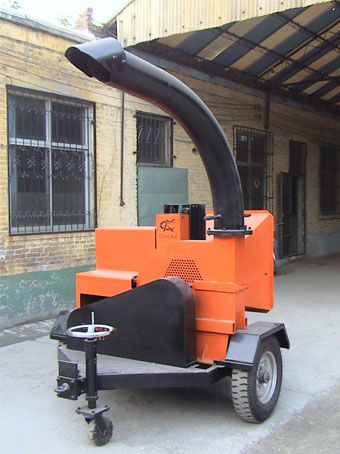

Tree Branch Crusher with Electric motor
This Electric motor movable tree branch and leaves crusher can crush all of the fresh and dried branches and leaves efficiently. The 20x20cm automatically intelligent inlet can be fed into the MAX Φ≤20cm wood logs and branches. The double-side cutting edges knifes can be sharpened repeatedly, whose life-span can reach to above 1000 hours. The side knifes prevents the barks from entangling the main shaft. The 360 °arbitrary rotating discharge tube can discharge the crushed raw material in 3-7m.
- Cutting Mode：CMSF6120D Disc Type
- Power：18.5KW
- Helper Motor Power：1.1—1.5(KW)
- Inletting speed：28－38m/min(adjustable）
- Cutting Speed：1400r/min
- Output Size：≤15mm
- Capacity： 8～10m3 /h （2-3t/h）
- Overall dimensions：2.4×1.9×2.6（m）

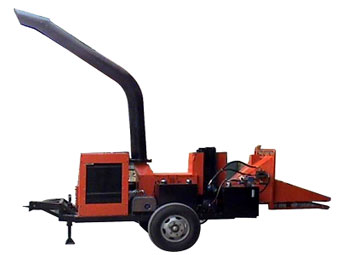

Tree Branch Crusher with Diesel engine
This Diesel engine movable tree branch and leaves crusher can crush all of the fresh and dried branches and leaves efficiently. The 48x25cm automatically hydraulic inlet can be fed into the MAX Φ≤25cm wood logs and branches. The double-side cutting edges knifes can be sharpened repeatedly, whose life-span can reach to above 1000 hours. The side knifes prevents the barks from entangling the main shaft. The 360 °arbitrary rotating discharge tube can discharge the crushed raw material in 3-9m.
- Cutting Mode：CMSF6125C Drum Type
- Power：64KW (LOVOL quadruple compound turbine diesel engine)
- Helper Motor Power：1.1—1.5(KW)
- Inletting speed：30－50m/min(adjustable）
- Cutting Speed：2200r/min
- Output Size：1-5cm
- Capacity： >50m3 /h （5-6t/h）
- Overall dimensions：4.9×2.0×3.6（m）
- Height of Outlet: 3.8m/2.4m ( can be customized)
